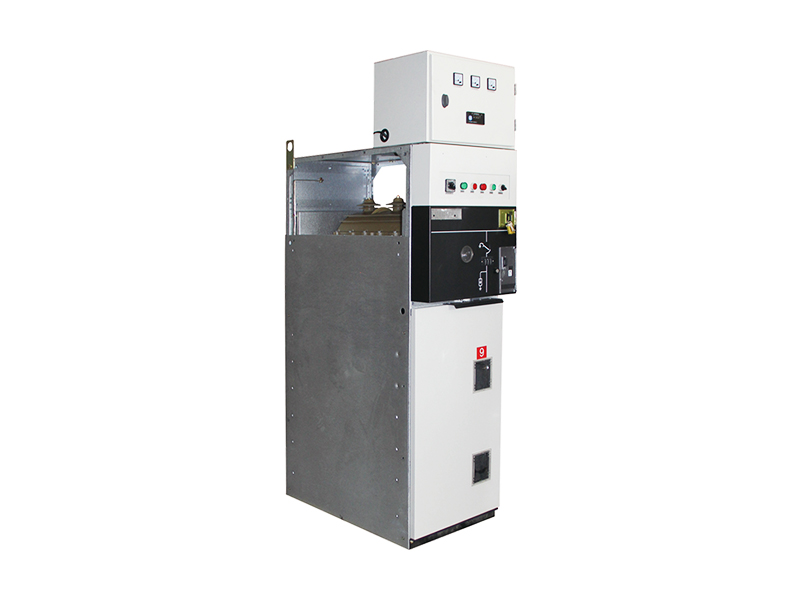

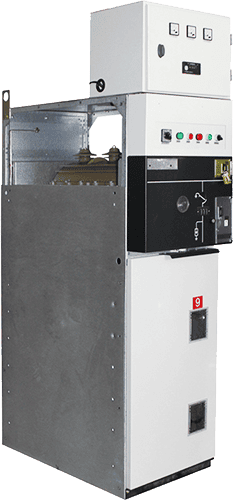

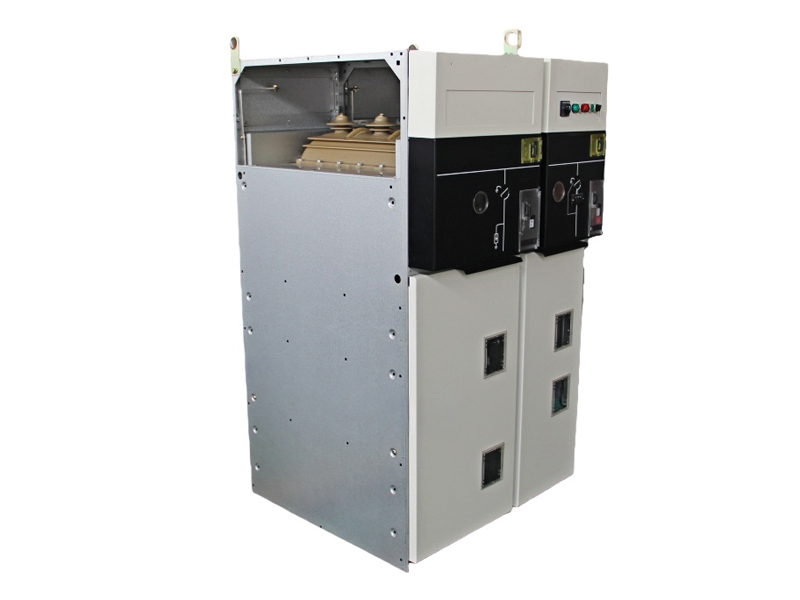

The XGN15-12 indoor metal enclosed switchgear is a compact indoor power supply and distribution unit. The ZN100-12 vacuum circuit breaker and XGN15-12 load switch of the XGN15-12 switchgear have the following advantages: strong insulation performance and convenient operation.
The interior of the indoor metal enclosed switchgear adopts a rotary fuse structure, which makes the replacement of the fuse highly convenient. The size of the XGN15-12 switchgear is extremely small compared to other gas insulation cabinets and it is eco-friendly power supply and distribution applications. This is particularly advantageous for urban users and in residential areas.
| Parameters | HSIS Solid insulated ring main cabinet | HSIS(C) load-break switch | HSIS(V) circuit breaker | composite apparatus | HSIS disconnecting, grounding switch |
| Rated voltage (KV) | 12 | 12 | 12 | 12 | 12 |
| Rated current (A) | 630/1250 | 630/1250 | 630/1250 | 125 | 630/1250 |
| Rated frequency (Hz) | 50 | 50 | 50 | 50 | 50 |
| Operation types | vacuum | vacuum | vacuum | vacuum | vacuum |
| Arc extinguishing types | Permanent magnet and spring | Permanent magnet and spring | Permanent magnet and spring | Permanent magnet and spring | spring |
| Power-frequency withstand voltage (KV) | 42 | 42 | 42 | 42 | 42 |
| 48 | 48 | 48 | 48 | 48 | |
| Lighting impulse (KV) | 75 | 75 | 75 | 75 | 75 |
| 85 | 85 | 85 | 85 | 85 | |
| Rated short-circuit breaking current (KA) | 20 | 20 | |||
| Rated short-circuit breaking current Breaking times | 30 | 30 | |||
| Rated short-circuit current (KA) | 50 | 50 | 50 | 20 | |
| Rated short –circuit breaking current breaking times | 5 | 5 | 2 | ||
| Rated short-time withstand current | 20 | 20 | 20 | 20 | |
| duration of rated short-circuit | 4 | 4 | 4 | 4 | |
| Rated peak with stand current (KA) | 50 | 50 | 50 | 50 | |
| rated cable-charging breaking current (A) | 10 | 10 | |||
| Take over current (A) | 1750 | ||||
| Arc current (S) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| partial discharge (pc) | ≤20 | ≤5 | ≤5 | ≤5 | ≤5 |
| IP | IP4X | IP4X | IP4X | IP4X | IP4X |
| Mechanical service life (Permanent magnet mechanism and spring mechanism) |
10000/30000 | 10000/30000 | 10000/30000 | 10000/30000 | 10000/30000 |
| Switchgear dimensions | 400*750*1450 | 400*750*1450 | 400*750*1450 | 400*750*1450 | 400*750*1450 |
-The vacuum load switch and related operating mechanism are maintenance free
-The switchgear has a simple and reliable mechanical interlock to prevent improper use and is easy to operate
-Each functional unit is separated from each other, meanwhile they are matched with an independent pressure releasing pathway, which can effectively prevent fault expansion
-You can conveniently observe the isolation fracture and the cable terminal connection joint through the observation vent
-The secondary component room has significant space, making wiring easy
-The fuse and wiring apparatus can be easily changed
-The size is small, only 50% of ordinary switch cabinets
-The maximum temperature: +50℃ minimum temperature: -40℃
-Humidity: daily average is no more than 95%, the monthly average is not more than 90%
-Seismic intensity: grade 8
-Altitude: ≤5000 meters
Circuit breaker module (V module)
Function:
-The circuit breaker module is used for the control and protection of lines and transformers, and has the following protections against: overload, short circuit, fast power break, reclosing, under voltage and grounding
Standard configuration:
-Circuit breaker switch cabinet (switch, electric / manual operating mechanism)
-Live displayer
-Grounding observation window
-Control box
-Cable plug observation window
-Protective current transformer (2 pcs)
-Active (passive) overload protection device
Basic performance:
-Vacuum extinction
-Permanent magnet mechanism and spring mechanism
-Mechanical interlock
-Three station isolation / grounding
Module size: 400*750*1450
Contact module
Function:
-The contact module can be matched with the related switch cabinet, to be connected with two bus lines, so that it forms a double bus connection, which improves the reliability of the power supply.
Standard configuration:
-12KV/630A bus tie cabinet
-Live displayer
Load switch Module (C Module)
Function:
-The load switch module is used for the control of inlet-outlet line cable, can break off the load current and short-circuit current.
Standard configuration:
-Load switch cabinet (switch, electric / manual operating mechanism)
-Live display
-Insulated ground observation window
-Control box
-Cable plug observation window
Basic performance
-Vacuum extinguishing
-Rotating three station isolation / grounding, spring / permanent magnet operating mechanism
-Five mechanical interlock
Module size: 400*750*1450
Cable lifting (energizing) module (D module)
Function:
-Bus bar cabinet, taking the bottom line as the busbar.
-The switchgear can also be used as a metering cabinet and outlet cabinet.
Standard configuration:
-Lifting cabinet
-Live display, insulated ground observation window
Basic performance:
-630 busbar
-Outlet line of cable box
-Cable plug observation window
Module size: 400*750*1450
High voltage metering module (M module)
Functions:
-Measuring and recording the power supply.
Standard configuration:
-Metering cabinet
-12KV/630A busbar
-Three phase PT (voltage transformer) 1 piece
-PT protection fuse
-2 sets of 630 cable plug
-CT (current transformer) 2 pcs
-Live displayer
Module size: 600*1000 *1450
Other optional configurations:
-Short circuit and ground fault indicator
-Current transformer and Meter
-Electrical operation (24/48VDC, 110/220V DC/AC)
-Auxiliary shock
-Cable accessories
-Transfer Switch
-Boundary switch control
