Low Voltage Integrated Distribution Board

The low voltage integrated distribution box is a distribution device suitable for three-phase AC 50HZ, rated voltage 0.4KV power applications.

Rated Insulating Voltage (V): 660

Rated Frequency (Hz): 50

Rated Current (A): 100-630

Main Busbar Rated Current (A): 100-630

Busbar Rated Short-Time Withstand Current (KA): 50

Metering Panel

Energy metering panels include components such as energy meters, current transformers, voltage transformers, and data acquisition modules.

Accuracy: Energy metering boxes use high-precision energy meters and transformers, which can accurately measure energy usage and ensure data accuracy.

Data Management: Metering boxes have data acquisition and storage functions, which can record historical electricity consumption data to help users analyze electricity usage and manage it rationally.

Low Voltage Cable Distribution Box

With the development of the cabling process of power grids, when small capacity, independent load distribution is relatively concentrated, the connection of multi...

Rated Voltage (V): 380

Rated Insulation Voltage (V): 690

1min Power-Frequency Withstand Voltage (V): 2500

Rated Current (A): 100-630

Rated Short-Circuit Breaking Current (kA): 16, 31.5, 40, 50

Shell Protection Level: IP33

Distribution Board

Distribution boards receive electrical power from a main source and distribute it to various branch circuits.

Environmental Adaptability: Constructed using durable metal or plastic materials to withstand various environmental conditions.

Flexibility: Can be expanded and have new circuits and loads added as needed, supporting the connection and control of various electrical equipment.

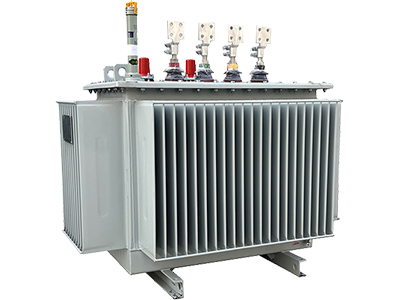

Power Transformer

The S11-M series fully sealed oil-immersed power transformers offer the advantages of low loss, low noise, and high efficiency, achieving significant energy-saving...

Low-Loss Core: The transformer core is stacked with high-quality cold-rolled silicon steel sheets, significantly reducing no-load loss and no-load current. The core is bound to ensure compactness and reduce noise.

Oxygen-Free Copper Windings: High and low voltage windings are made of oxygen-free copper. Low voltage windings of 500kVA and below adopt a double-layer cylindrical structure.
