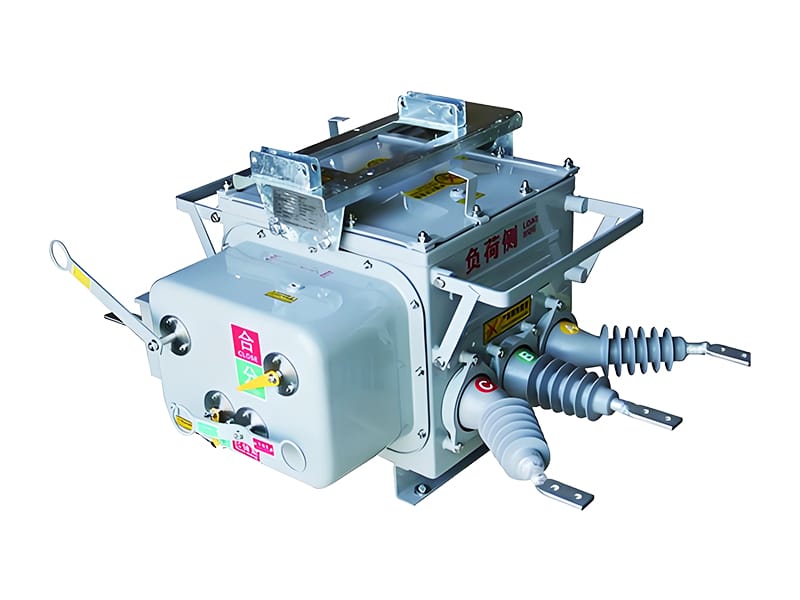

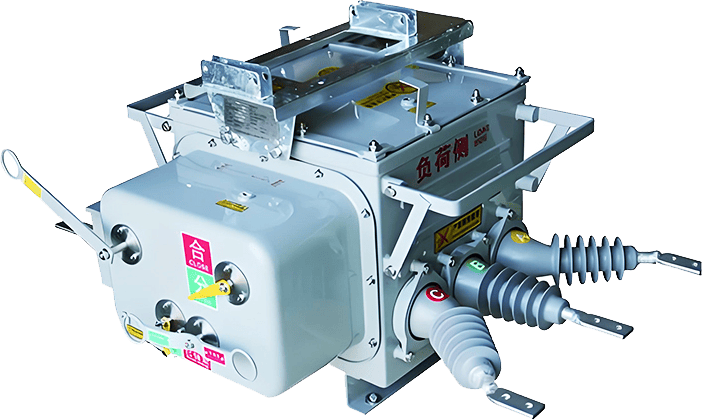

Outdoor Vacuum Circuit Breaker, HZW20-12

 Outdoor Vacuum Circuit Breaker, HZW20-12
Product overview:

The HZW20-12 outdoor vacuum circuit breaker is ideal equipment to avoid widespread power cuts when a single user failure happens. The outlet side of this device is equipped with a current transformer which works together with the controller. Installed on the T point of 10kV overhead distribution lines or user terminals, this vacuum circuit breaker can realize the automatic switching off of single-phase grounding line faults and automatically isolate short-circuit faults, ensuring the electrical safety of non-faulty users. For this reason, it is designed for use in areas such as substations, industrial and mining enterprises, rural power grids and distribution systems.

Application:

The outdoor vacuum circuit breaker is suitable in areas such as substations, industrial and mining enterprises, rural power grids and distribution systems which play roles in protection and control during operation.

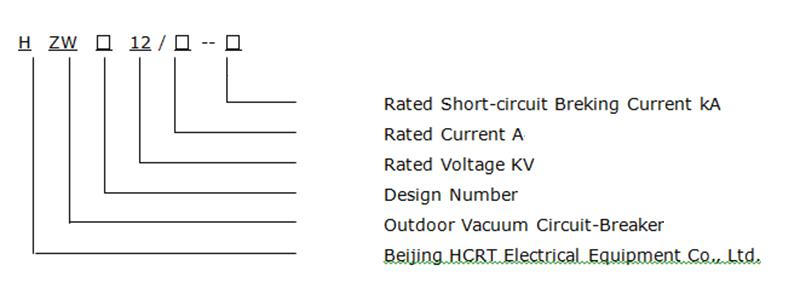

Type and significance of the product:
Technical parameters:
Item No. Commodity Unit Parameters
1 Rated Voltage kV 12
2 Rated Current A 630/1250
3 Rated Frequency Hz 50
4 Rated short-circuit breaking current kA 25
5 Breaking times of Rated short-circuit breaking current Times 30
6 Rated peak with stand current kA 63
7 Rated short-time withstand current(4S) kA 25
8 Rated short-circuit current kA 63
9 1 min power-frequency withstand voltage 1min kV 42/48
10 lightning impulse withstand voltage kV 75/85
11 Mechanical service life Times 10000(Spring)
30000(Permanent Magnetic)
12 Rated operation order opening-0.3s-closing and opening -180s- closing and opening
13 Switch weight Kg 150
Features:

-The overall structure of the outdoor vacuum circuit breaker is a superior box-type seal structure with full enclosure, and the material of shell is made of stainless steel so that the device is maintenance-free.

-Flexible and convenient operation:
-The vacuum circuit breaker adopts a spring type operated actuator which has automatic power storage, can remotely control the off-on switch and features a manually controlled off-on switch.
-It adopts a permanent magnetic actuator which has automatic power storage and can remotely and manually control the off-on switch.

-High level of automatic control: It can realize remote operation, GPRS remote control.
-Good insulating property: it uses a vacuum interrupter and compound insulation.
-Flexible installation: it adopts a pole mount or fixed base installation.

Application environment:

-Altitude: within 2000 meters; gradation for surface pollution: IV
-Temperature: -40 ℃- +40 ℃
-Wind speed: within 35m/s; Earthquake intensity: within 8 magnitudes
-Using condition requests no flammable, explosive danger, chemical corrosion
