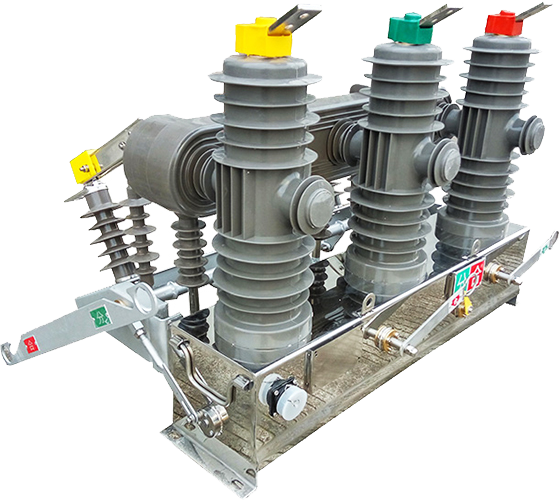

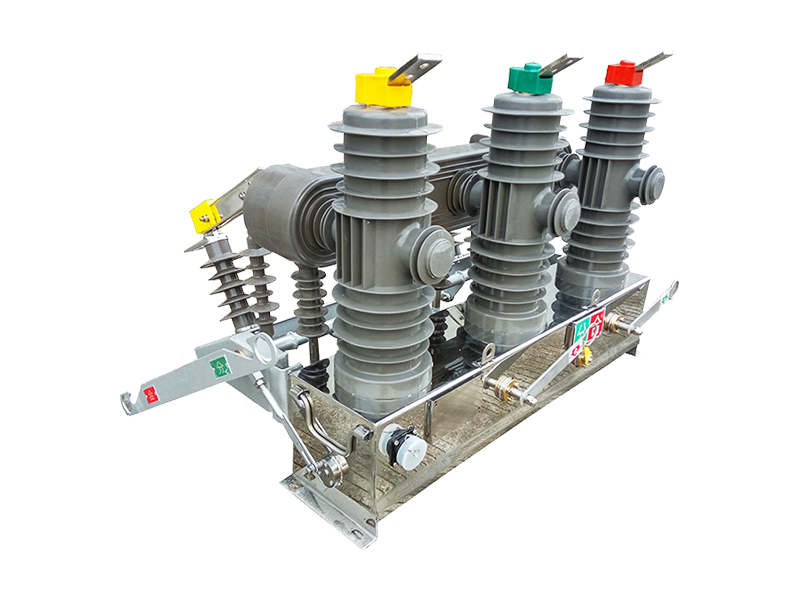

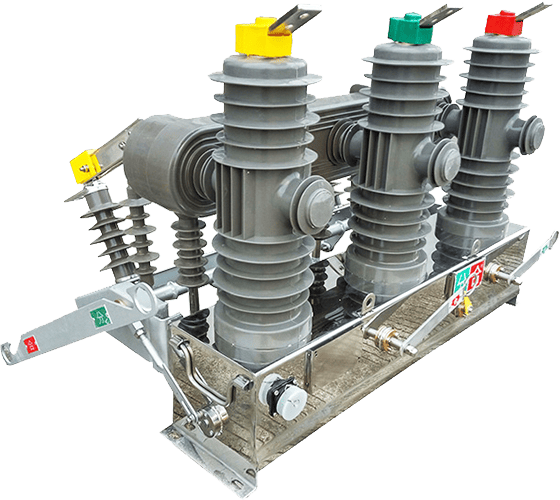

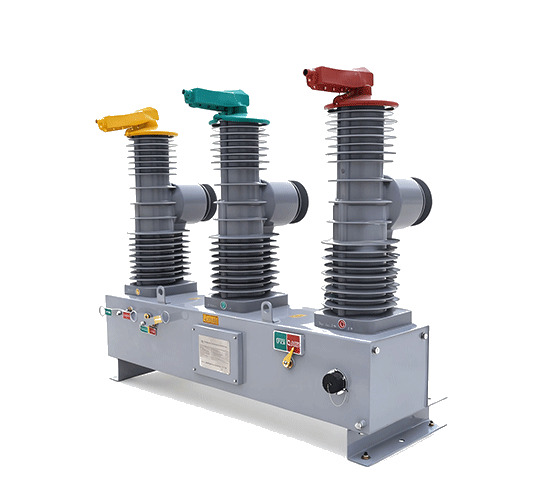

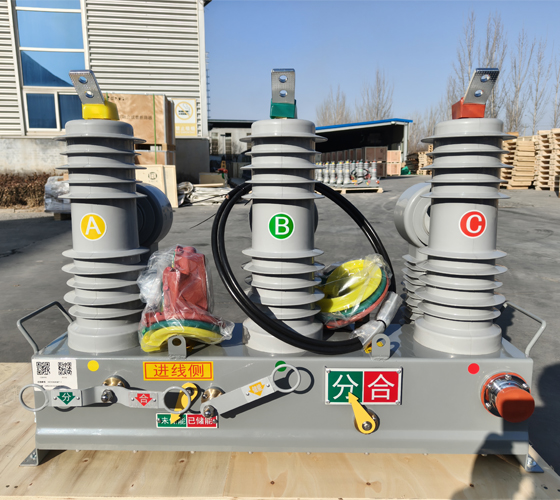

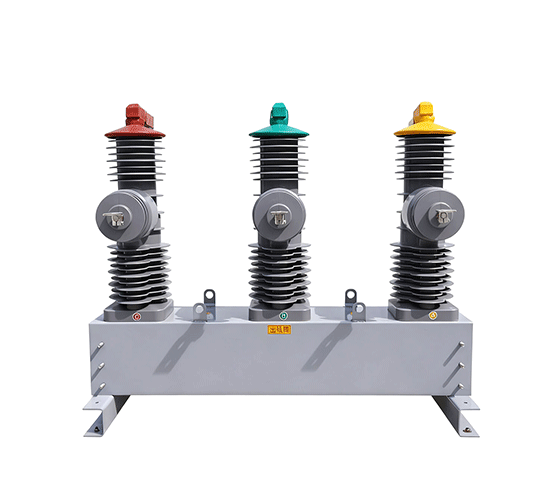

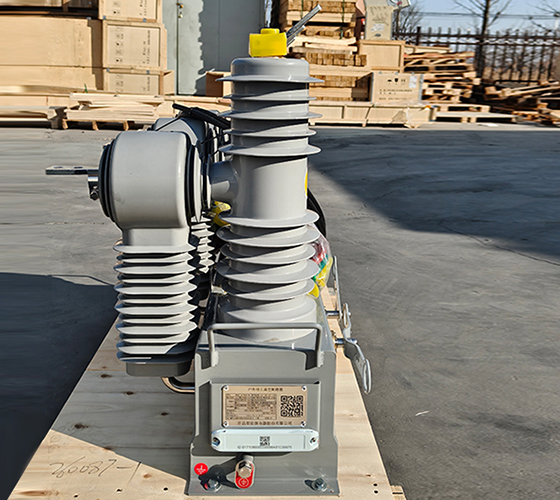

Permanent Magnet Outdoor Vacuum Circuit Breaker (VCB)
POLE-MOUNTED SWITCH

Permanent Magnet Outdoor Vacuum Circuit Breaker (VCB)

The permanent magnet outdoor VCB (high-voltage switching device) is designed for use in 7.2/12kV, three-phase AC 50Hz power grids. Utilizing a permanent magnet operating mechanism, it forms an intelligent circuit breaker when combined with a control terminal and PT (potential transformer). It is widely applicable as a feeder terminal in substations, in power distribution lines for industrial and mining enterprises, and in urban and rural power transmission and distribution systems for protection and control. It is particularly suitable for locations with frequent operations and for automated distribution networks in urban and rural areas.

Request a Quote
Features
Reliable Vacuum Arc Extinction: Ensures dependable breaking performance with minimal contact wear and is maintenance-free.
Environmentally Friendly Insulation: Employs epoxy resin composite as the external insulation material, offering excellent voltage and weather resistance, and is oil-free and SF6-free.
Long-Life Permanent Magnet Mechanism: Achieves a mechanical lifespan of up to 30,000 operations and enables rapid fault interruption for fast protection.
Integrated Isolation Switch Option: Can be configured with an integrated disconnector featuring a clear visible breaking point and anti-misoperation interlock.
Manual Operation Option: A manual operating mechanism can be optionally equipped for manual closing in emergency situations.
