LOW VOLTAGE SWITCHGEAR

380V Low Voltage Switchgear

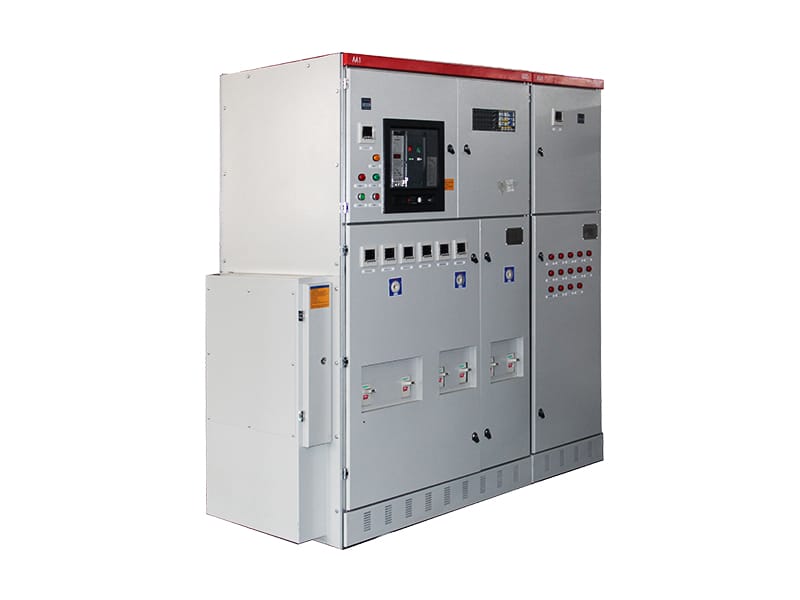

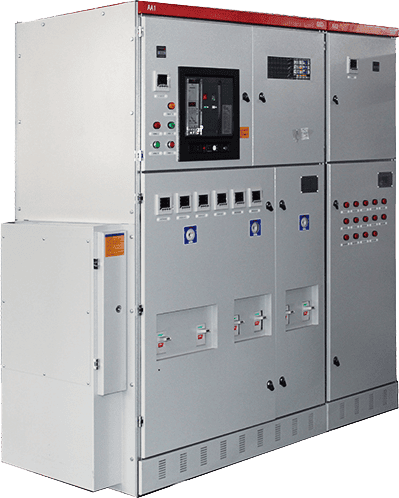

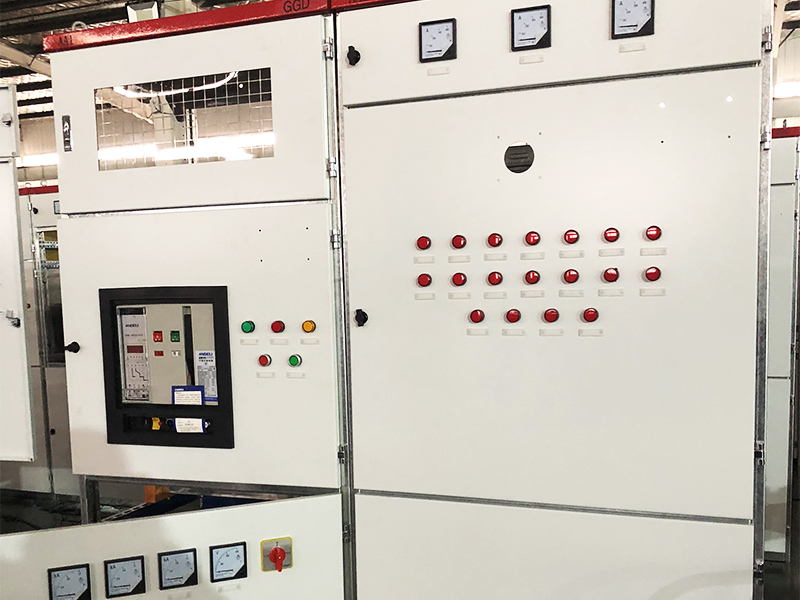

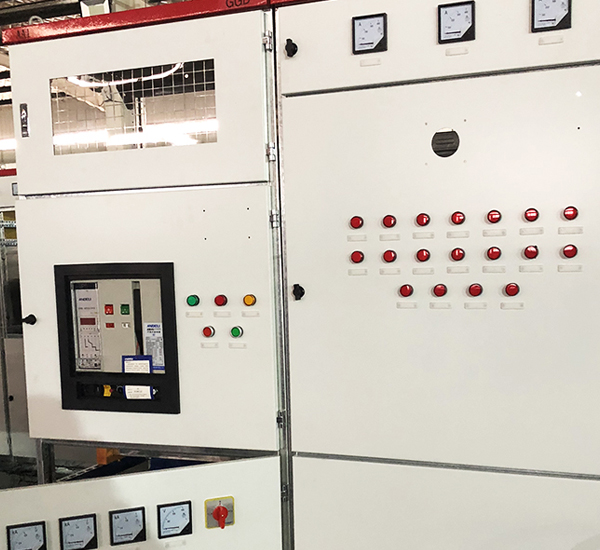

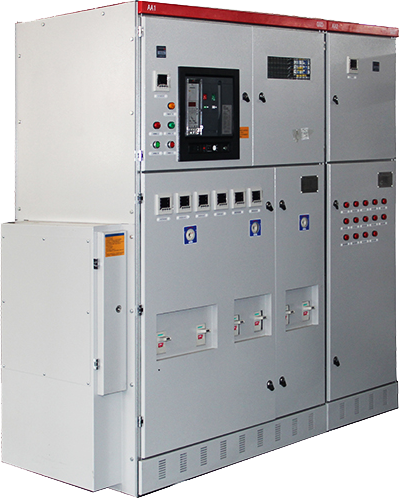

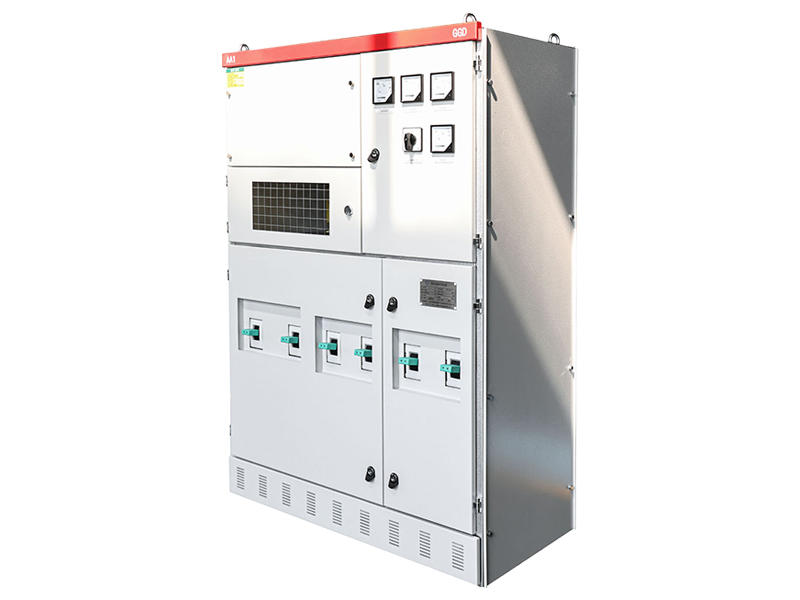

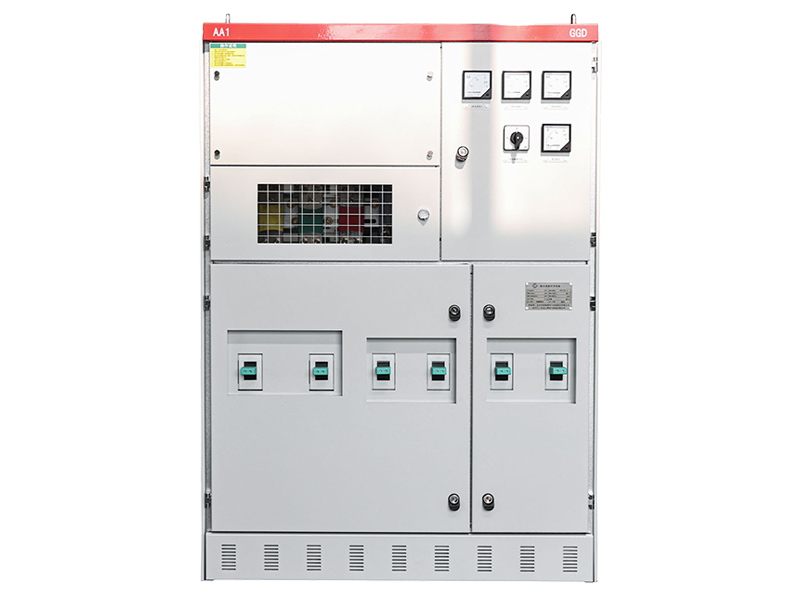

The GGD 380V Low Voltage Switchgear is designed for reliable energy conversion, distribution, and control in AC 50Hz power systems with a rated voltage of 380V and current up to 3150A. It is widely used in power plants, substations, industrial facilities, and commercial buildings. Built with robust cold-formed steel and engineered for ventilation and modularity, the GGD cabinet offers flexibility, safety, and ease of installation and maintenance.

Request a Quote

Features

Robust Frame: The cabinet frame is assembled by partial welding of 8MF cold-formed steel, ensuring the accuracy of the cabinet.

Efficient Heat Dissipation: The cabinet design fully considers heat dissipation during operation, with varying numbers of heat dissipation holes at the top and bottom, forming a natural ventilation duct from bottom to top to achieve cooling.

Convenient Access: The cabinet door is connected with a hinge for easy installation and disassembly.

Easy Busbar Installation: The cabinet top cover can be removed when needed, facilitating the assembly and adjustment of on-site busbars. Lifting rings are installed at the four corners of the frame top for hoisting and transportation.
