POLE-MOUNTED SWITCH

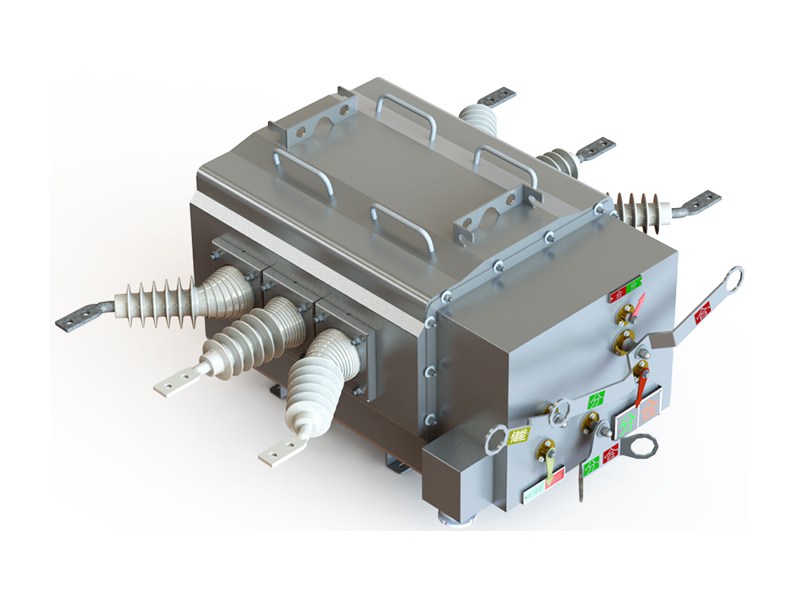

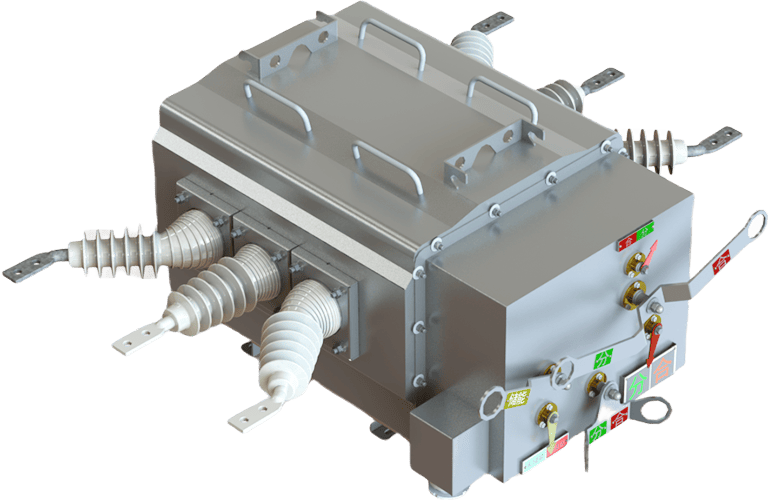

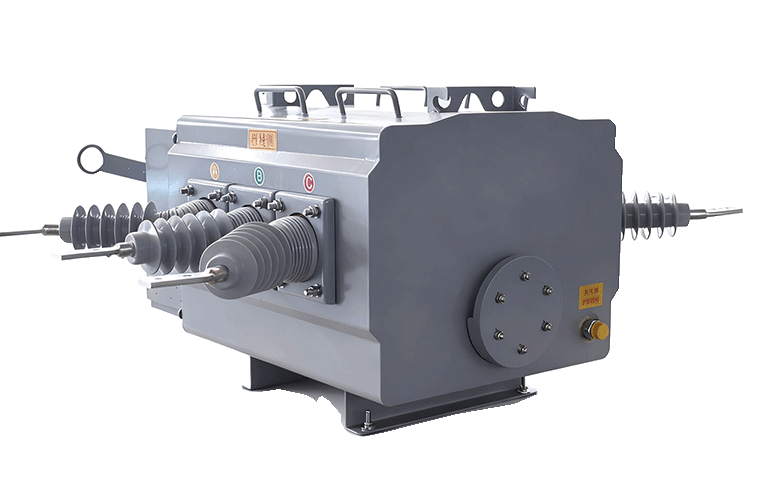

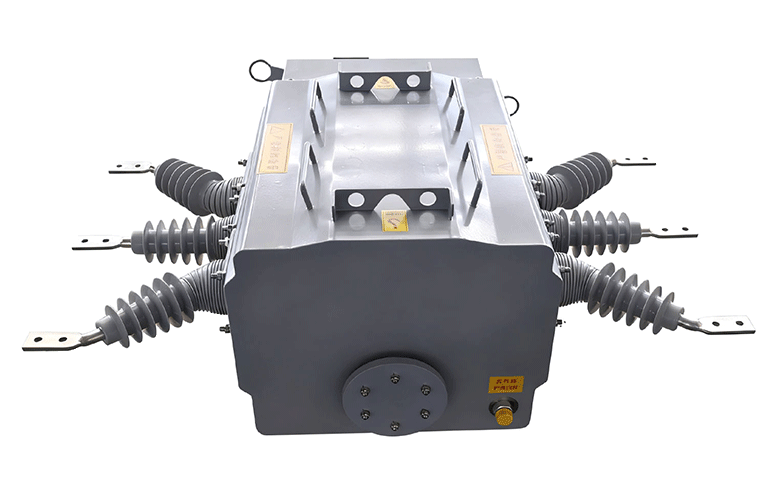

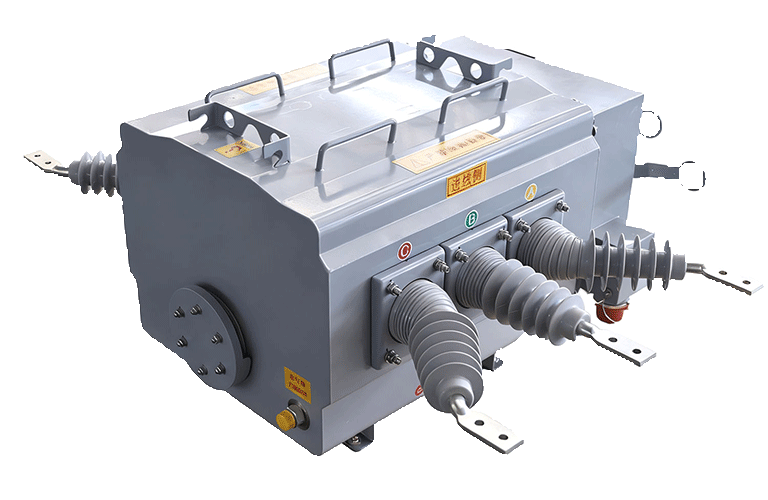

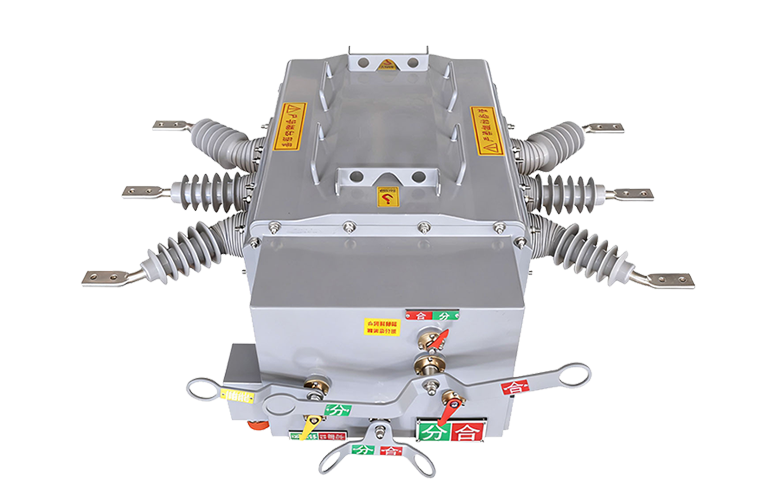

Common-Box Type Pole-Mounted Switch

The HZW□-12 intelligent pole-mounted switch is an integrated smart distribution device designed for overhead lines in power distribution networks. It combines the switch body, current/voltage transformers or sensors, Feeder Terminal Unit (FTU), and primary/secondary connection cables into a single unit. Primarily used to break and close load current, overload current, and short-circuit current in power systems, it provides control and protection functions. This switch enables data acquisition, fault processing, communication, time synchronization and location, waveform recording, and feeder automation capabilities.

Request a Quote

Technical Specifications

Rated Voltage (kV): 12

Rated Current (A): 630

Rated Short-Circuit Breaking Current (kA): 20

Rated Short-Time Withstand Current (kA/4s): 20

One-Minute Power Frequency Withstand Voltage (kV): 42/48

Rated Lightning Impulse Withstand Voltage (kV): 75/85

Mechanical Life (times): 10000

IP Class: IP 67

Machine Weight: ≤150kg

Features

Flexible Configuration: Adaptable to various smart grid requirements for power distribution networks.

Integrated Solid-Sealed Poles: Utilizes one-piece solid-sealed poles for all three phases.

High Insulation Strength: Offers high dielectric strength at the break points and is equipped with an explosion-proof device for operational safety.

Fully Sealed and Reliable: Features a completely sealed design with a high level of reliability and an IP67 protection rating.

High Accuracy Detection: Provides high accuracy in detection components and a high accuracy rate for ground fault detection.
